PCM Connector Connection Note

CAUTION:
  • If the PCM connector is connected incorrectly it could be damaged. When connecting the PCM connector, connect it using the following procedure.
  • If the PCM connector is inserted at an angle and the lever is moved, the connector could be damaged. Verify that the PCM connector is inserted straight.

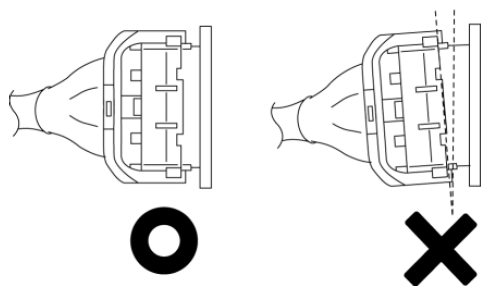

Fig 1: Inspecting PCM Connector
G08155428
  1. Verify that the PCM connector lever is tilted towards the wiring harness side as shown in the figure.

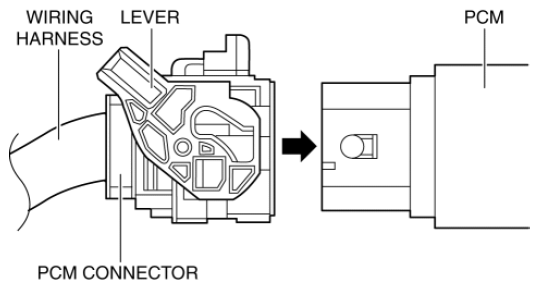

    Fig 2: PCM Connector Lever
    G08155429
  2. Insert the PCM connector straight until it contacts the PCM and verify that the lever reverts upward naturally.
  3. Push the lever until a click is heard.

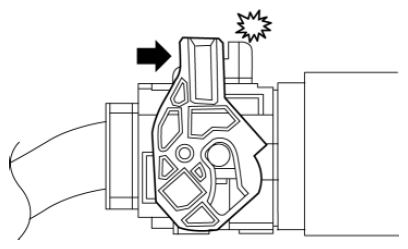

    Fig 3: Locking Connector Lever
    G08155430
