CMP sensor signal

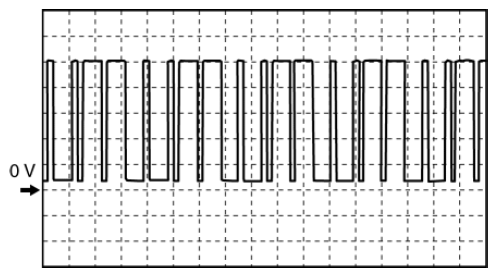

Fig 1: CMP Sensor Signal Waveform Graph

PCM terminals

• 2S (+)-body ground (-)

  Oscilloscope setting

• 2 V/DIV (Y), 100 ms/DIV (X), DC range

  Vehicle condition

• Idle after warm up
