Driver-side Air Bag Module

  1. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
  2. Connect the SST (Adapter harness)  to the driver-side air bag module as shown in the figure.

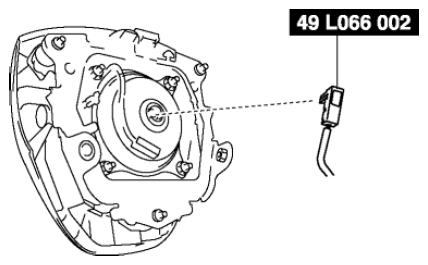

    Fig 1: Connecting SST (Adapter Harness) To Driver-Side Air Bag Module
    G08152496
  3. Install the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
  4. Connect the SST (Deployment tool)  to the SST (Adapter harness)  .

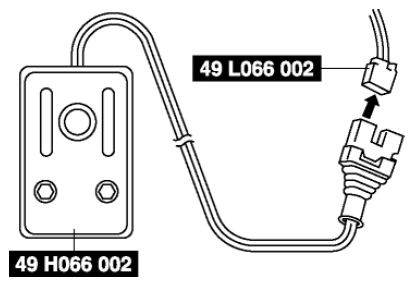

    Fig 2: Connecting SST (Deployment Tool) To SST (Adapter Harness)
    G08152497
  5. Connect the SST (Deployment tool)  to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  6. Verify that the red lamp on the SST (Deployment tool)  is illuminated.
  7. Verify that all persons are standing at least 6 m {20 ft}  away from the vehicle.
  8. Press the activation switch on the SST (Deployment tool)  to operate (deploy) the air bag module.
    Fig 3: Identifying Activation Switch On SST (Deployment Tool)
    G08152498
    WARNING:
    • The air bag module is very hot immediately after it is operated (deployed). You can get burned. Do not touch the air bag module for at least 15 min after deployment.
  9. Disconnect the SST (Deployment tool)  form the SST (Adapter harness)  .
