Washer Fluid-Level Sensor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION .)
  4. Remove the connector of the washer fluid-level sensor from the washer tank.

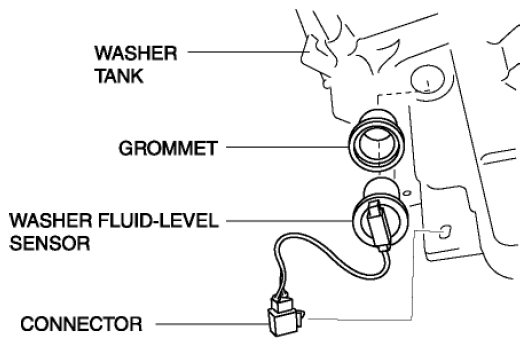

    Fig 1: Identifying Washer Fluid-Level Sensor, Connector, Washer Tank And Grommet
    G08153404
  5. Remove the washer fluid-level sensor.
  6. Remove the grommet.
  7. Install in the reverse order of removal.
