Windshield Wiper Motor Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the figure.

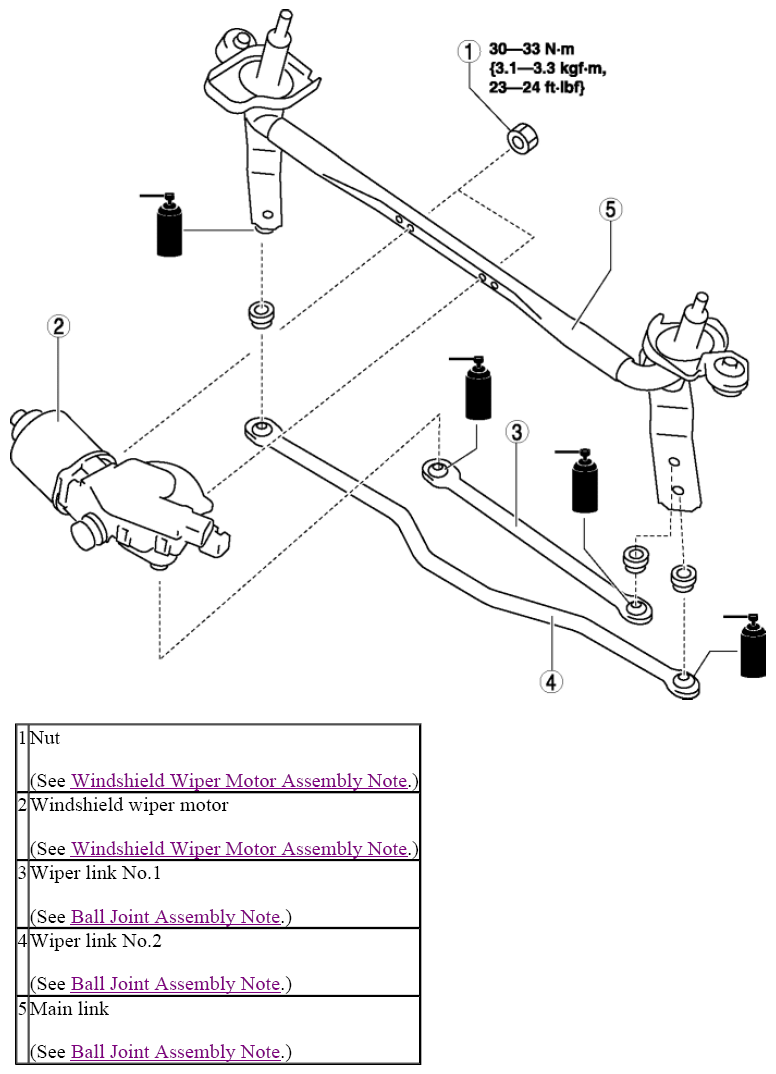

    Fig 1: Windshield Wiper Motor With Torque Specifications
    G08153387
  2. Assemble in the reverse order of disassembly.
