Door Lock Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the inner handle cover. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Remove the screws, then remove the door lock switch.

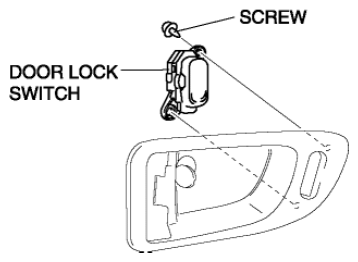

    Fig 1: Identifying Door Lock Switch And Screws
    G08153039
  4. Install in the reverse order of removal.
