Liftgate Latch Switch Inspection

Disconnect the negative battery cable.
Remove the following parts:
1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
4. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
5. Liftgate latch and lock actuator (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the table.

Fig 1: Liftgate Latch Switch Continuity Chart
- If not as indicated in the table, replace the liftgate latch and lock actuator.
NOTE:
- When inspecting the latch condition of the liftgate latch switch, press in the latch lever using a flathead screwdriver.

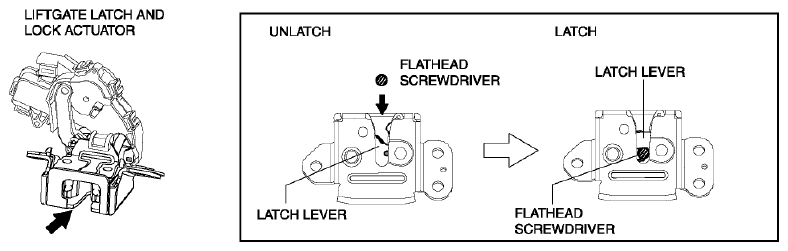

  Fig 2: Pressing Latch Lever Using Flathead Screwdriver
