Liftgate Opener Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
    4. Liftgate light (See LIFTGATE LIGHT REMOVAL/INSTALLATION .)
    5. Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION .)
    6. Liftgate opener switch (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION .)
  3. Verify the continuity of liftgate opener switch terminals B and C.

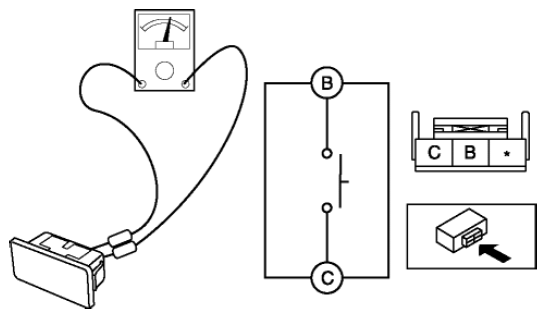

    Fig 1: Checking Continuity Of Liftgate Opener Switch Terminals B And C
    G08153104
  4. Verify that the continuity is as indicated in the table.
    Fig 2: Liftgate Opener Switch Continuity Chart
    G08153105
    • If not as indicated in the table, replace the liftgate opener switch.
