Air Bleeding: Notes

CAUTION:
  • If the strainer is removed, impurities may penetrate the power steering system and damage it. To prevent this, always bleed air with the strainer installed.

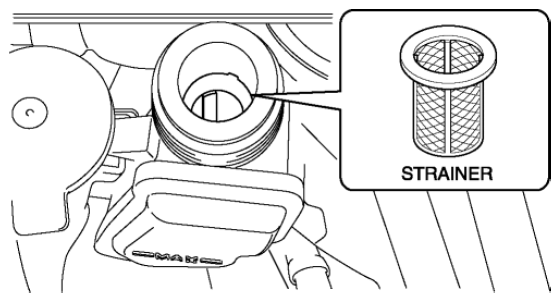

    Fig 1: Identifying Strainer
    G08152186
  • Do not maintain the steering wheel fully turned for 5 s or more. The oil temperature could rise and damage the oil pump.
NOTE:
  • Add fluid and bleed air using the following procedure. Otherwise, additional time will be required to add fluid because of mesh resistance.
