Steering Wheel And Column Removal/Installation: Notes
WARNING:
- Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS .) (See AIR BAG SYSTEM SERVICE CAUTIONS .)
- Remove the driver-side front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Remove the driver-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
- Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
- Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)
- Remove the center console. (See CENTER CONSOLE REMOVAL/INSTALLATION .)
- Remove the shift lever knob (MTX). (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
- Remove the selector lever knob (ATX). (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
- Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
- Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION .)
- Remove the hood release lever. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
- Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)

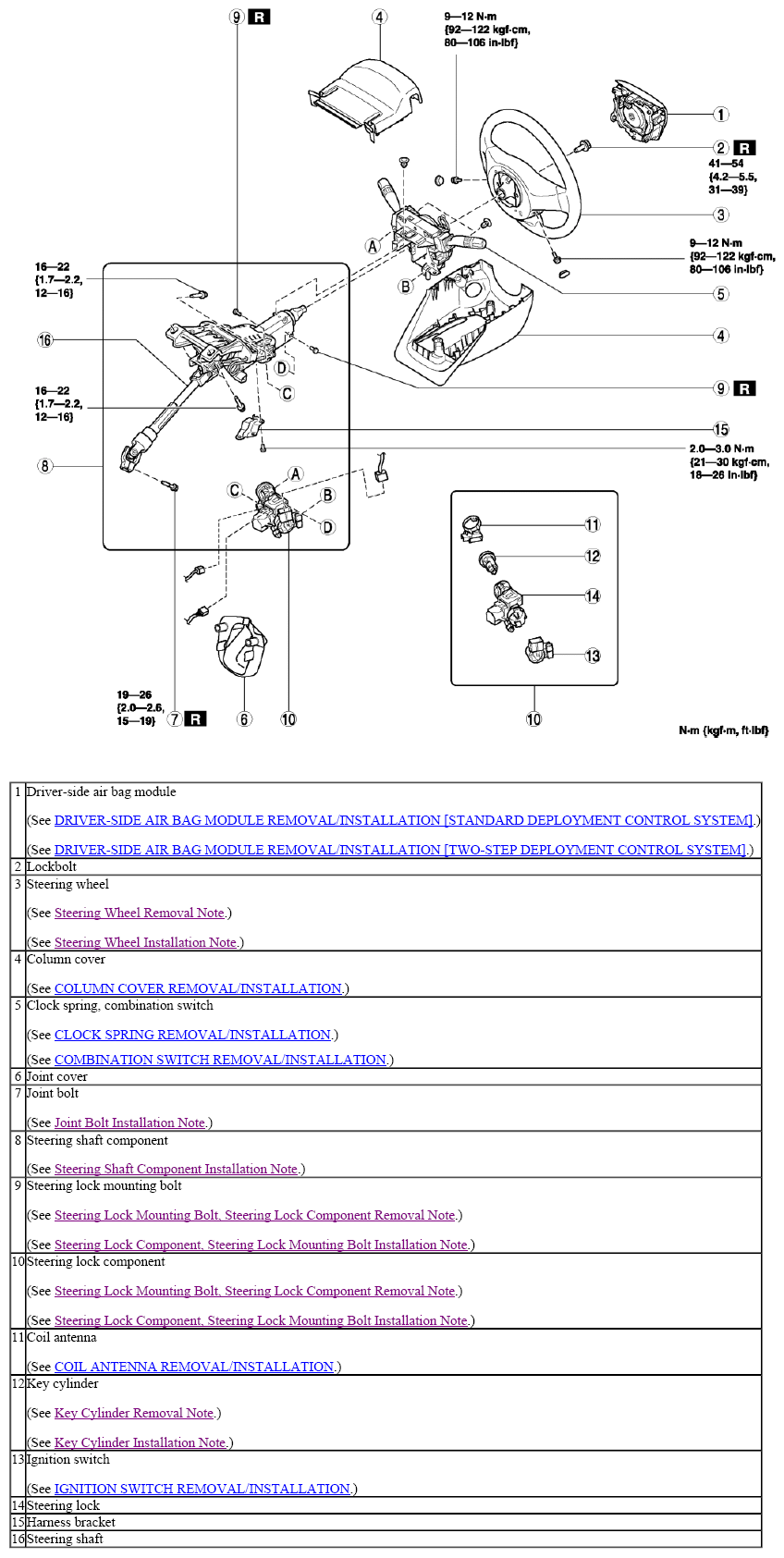

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- If the key cylinder is replaced, perform programming for the immobilizer system related parts. (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING .)
