Body Control Module (BCM) Configuration

NOTE:
  • Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the BCM CONFIGURATION.
  1. Connect the M-MDS to DLC-2.

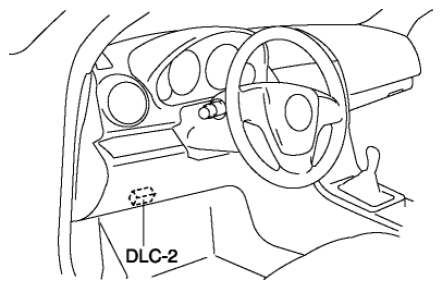

    Fig 1: Identifying DLC-2
    G08145162
  2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
    • When using the IDS (laptop PC)
      1. Select "Module Programming".
  3. Then, select items from the screen menu in the following order.
    1. Select "Programmable Module Installation".
    2. Select "BCM/GEM".
  4. Perform the configuration according to the directions on the screen.
  5. Retrieve DTCs by the M-MDS, then verify that there is no DTC present.
    • If a DTC(s) is detected, perform the applicable DTC inspection. (See DTC TABLE [BCM] .)
