Part-side connector

The viewing direction of part-side connectors is from the terminal side.

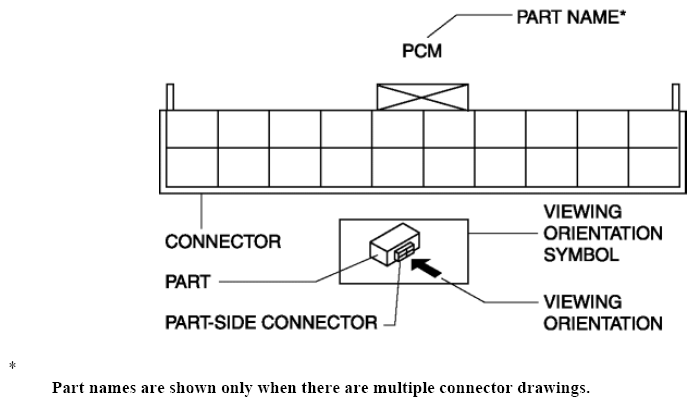

Fig 1: Identifying Part-Side Connector
G08140067

* Part names are shown only when there are multiple connector drawings.
