DSC HU/CM Installation Note

Install the DSC HU/CM from the DSC HU/CM Bracket as shown in the figure.

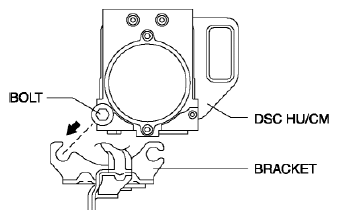

Fig 1: Identifying DSC HU/CM, Bracket And Bolt
Tighten the bolt as shown in the figure.
Tightening torque
- 4.3-6.5 N.m {44-66 kgf.cm, 39-57 in.lbf}
