Power Outer Mirror Switch Inspection

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Remove the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION ).
Verify that the continuity between the power outer mirror switch terminals is as indicated in the table.

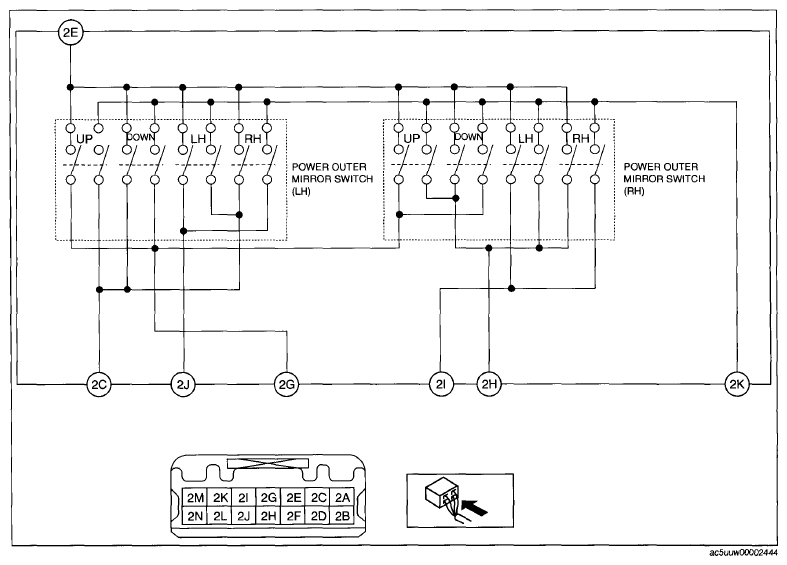

Fig 1: Checking Continuity Between Power Outer Mirror Switch Terminals
- If not as indicated in the table, replace the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION ).

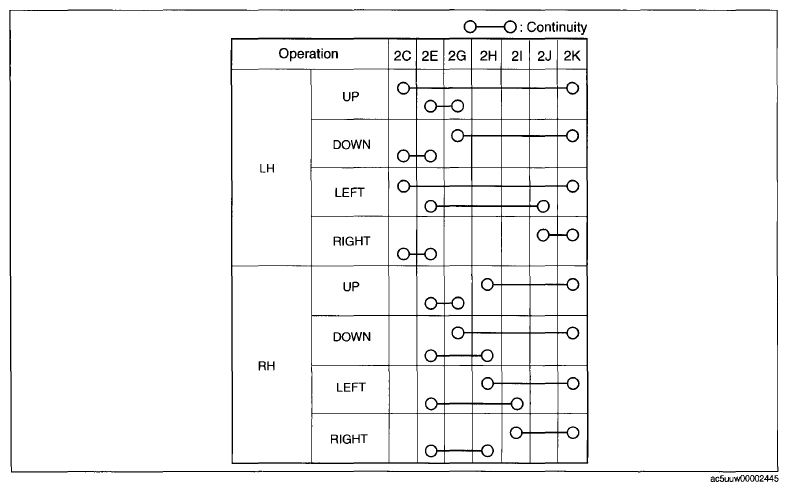

  Fig 2: Power Outer Mirror Switch Continuity Reference Chart
