Power Window SUBSWITCH Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the cover A.
  3. Insert a tape-wrapped fastener remover shown in the figure and remove the tab B in the direction of arrow (1).

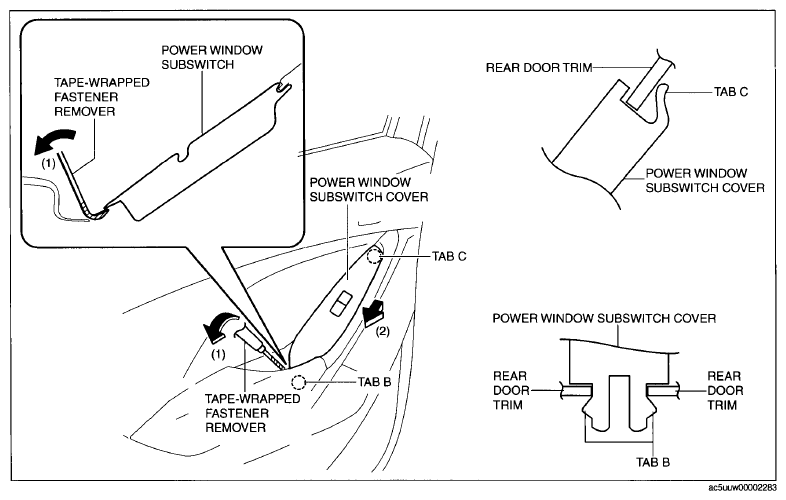

    Fig 1: Removing Power Window Subswitch Cover Tab B
    G09076723
    Fig 2: Removing Tab C
    G09076724
  4. Slide the power window subswitch cover in the direction of the arrow (2) shown in the figure and remove the tab C.
  5. Disconnect the power window subswitch connector.
  6. Pull the edge of power window subswitch cover in the direction of arrow (3) and detach the tab D.

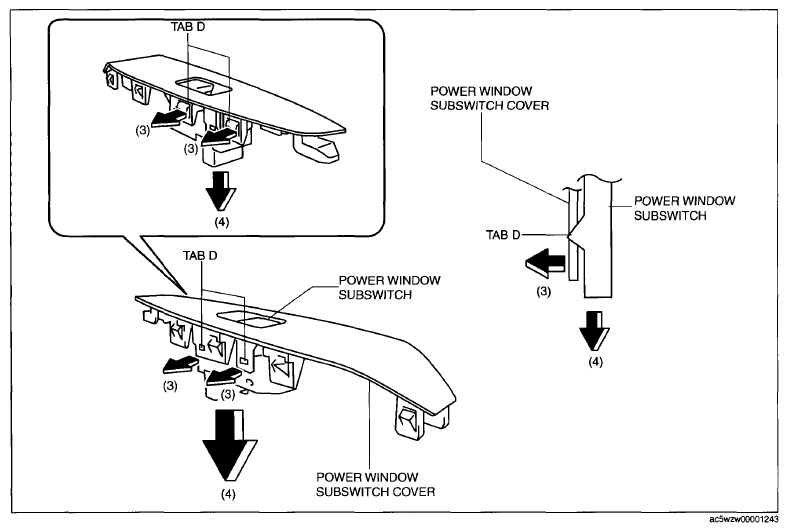

    Fig 3: Removing Power Window Subswitch
    G09076725
  7. Remove the power window subswitch in the direction of arrow (4) shown in the figure.
  8. Install in the reverse order of removal.
