Rear Window Glass Installation

WARNING:
  • Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.
CAUTION:
  • Proper installation of the glass may be difficult if sealant is cracked or the glass is pushed out by air pressure when a door is opened/closed with all the window glass closed. Keep the door glass open until the rear window glass installation is completed.
  1. Remove sealant along the perimeter of the glass using a utility knife or scraper. (When reusing the glass)
  2. Clean and degrease an approx. 50 mm {2.0 in}  wide strip along the perimeter of the glass.
  3. Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.
  4. Install spacers, pins and fastener to the glass as shown in the figure.
    NOTE:
    • When reusing the glass, align it with the alignment mark placed before the glass was removed.
  5. Apply glass primer on the glass as shown in the figure then allow it to dry for approx. 30 min.
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
    NOTE:
    • Apply primer to the hollowed marks in the ceramic coating.

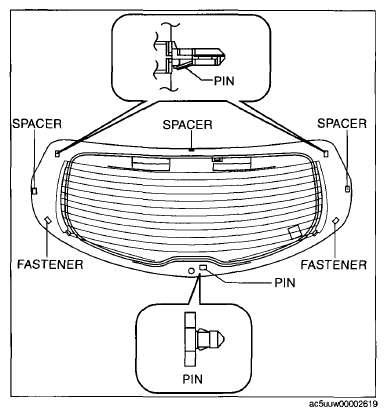

    Fig 1: Identifying Rear Window Glass Pins, Fastener And Spacer
    G09076691

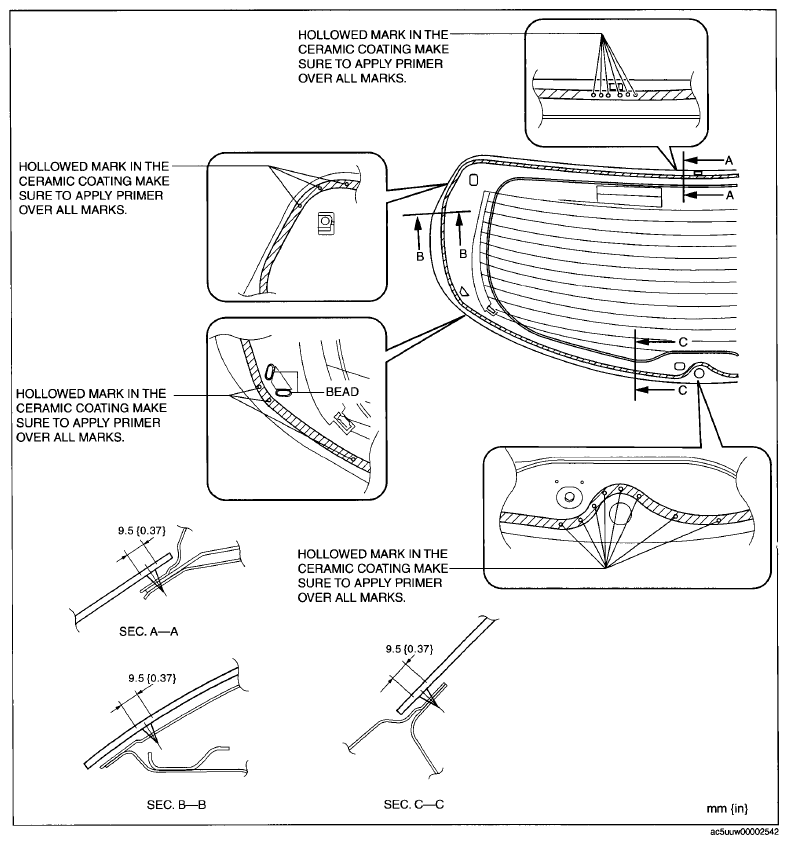

    Fig 2: Identifying Ceramic Coating Hollowed Marks Primer Application Area
    G09076692
  6. Cut away the old sealant using a utility knife or scraper so that 1-2 mm {0.04-0.07 in}  thickness of sealant remains along the perimeter of the frame.
  7. Clean and degrease along the perimeter of the bonding area on the body.
    Fig 3: Cutting Sealant Using Knife
    G09076693
  8. If the sealant has come off completely in any one place, apply some primer, and allow it to dry for approx. 30 min.
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
  9. Apply body primer on the body as shown in the figure, then allow it to dry for approx. 30 min.
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

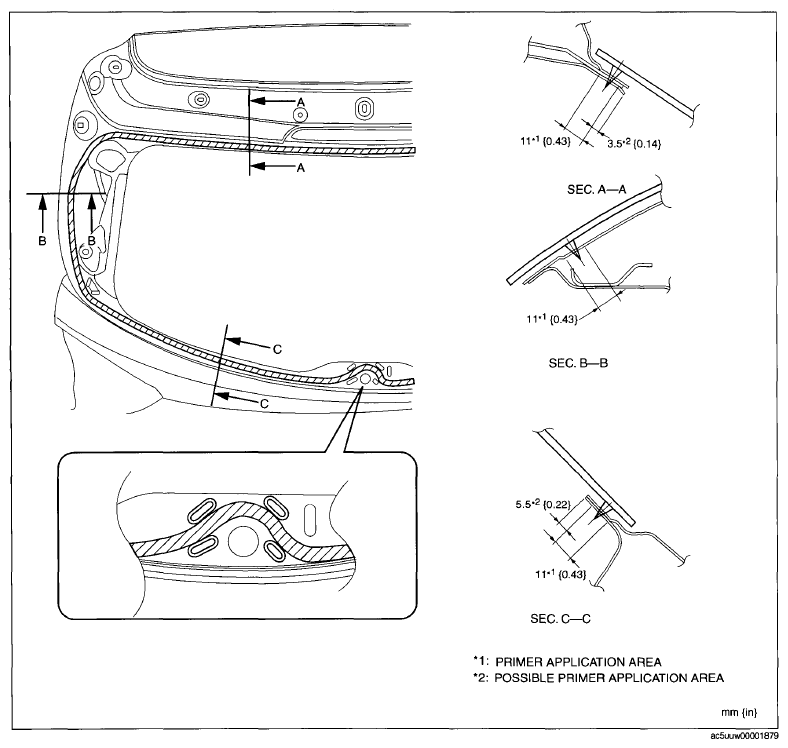

    Fig 4: Identifying Body Primer Application Area
    G09076694
  10. Apply sealant to the area of the glass surface as shown in the figure.

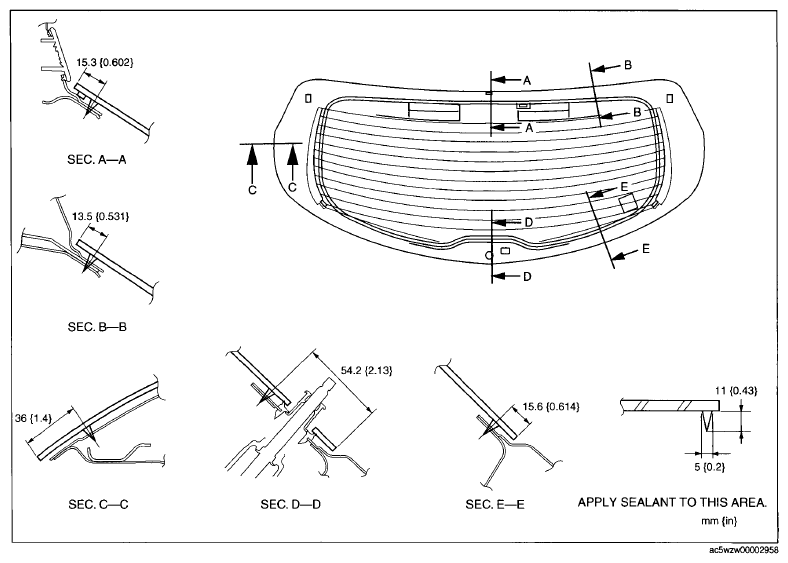

    Fig 5: Identifying Glass Surface Sealant Application Area
    G09076695
  11. Install the rear window glass.
  12. Verify that the gap at the upper and lower parts of the glass is within the specification shown in the figure, then press along the perimeter of the glass.

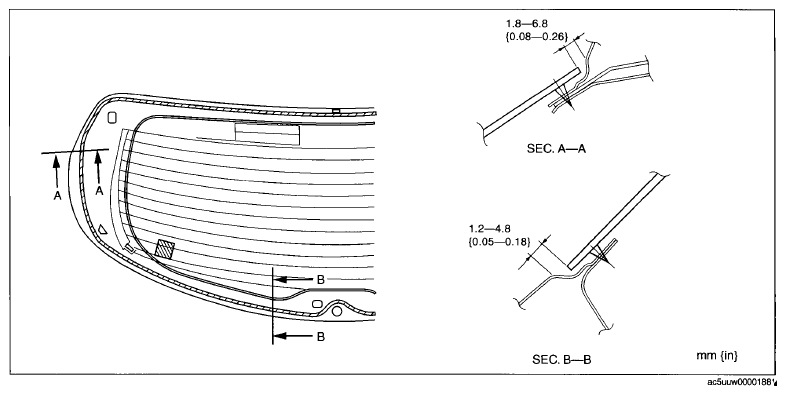

    Fig 6: Identifying Gap Between Upper And Lower Parts Of Glass
    G09076696
  13. Connect the filament connectors in the direction of the arrow in the order of (1), (2) shown in the figure.
  14. Connect the antenna feeder No.3 connector, (with SIRIUS satellite radio system)
  15. Install the following parts:
    1. Rear wiper motor (See REAR WIPER MOTOR REMOVAL/INSTALLATION ).
    2. Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION ).
    3. Rear spoiler (See REAR SPOILER REMOVAL/INSTALLATION ).
    4. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION ).
    5. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION ).
    6. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION ).
    7. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION ).
  16. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  17. Allow the sealant to harden completely.

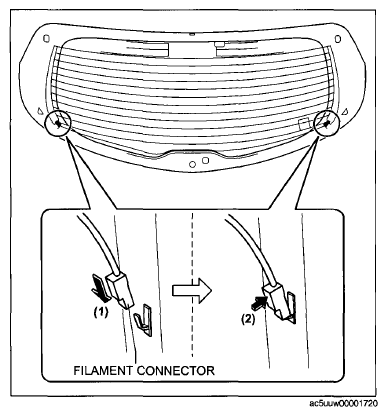

    Fig 7: Connecting Filament Connector
    G09076697

    Sealant hardening time: 24 h
