Brake Pipe Removal Note

  1. Place an alignment mark on the brake pipe and DSC HU/CM.
  2. Apply protective tape to the connector to prevent brake fluid from entering.
  3. Disconnect the brake pipes.

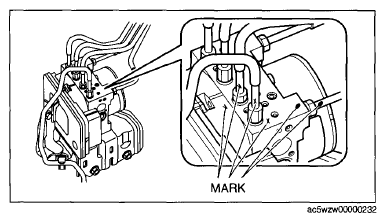

    Fig 1: Identifying Brake Pipe
    G09075244
