Exhaust System Removal/Installation: 2WD: Notes

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] .)
Remove in the order indicated in the table.
Remove the insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION .)
Install in the reverse order of removal.

Step 1

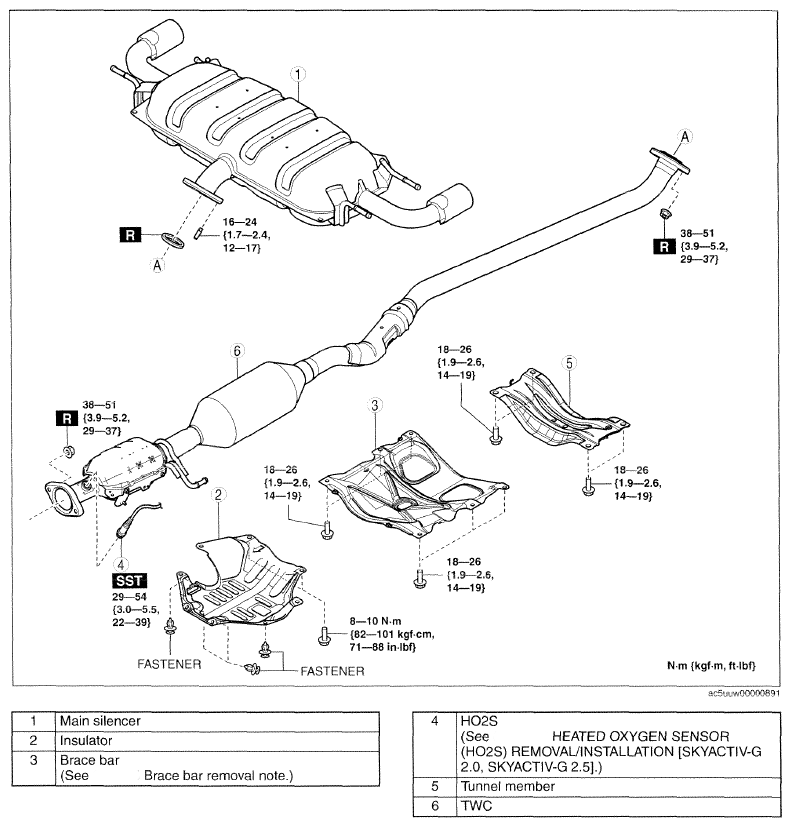

Fig 1: Exploded View Of Exhaust System - 2WD (Step 1) With Torque Specifications

Step 2

Fig 2: Exploded View Of Exhaust System - 2WD (Step 2) With Torque Specifications
