Exhaust System Removal/Installation: AWD: Notes

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Remove in the order indicated in the table.
Remove the insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION ).
Install in the reverse order of removal.

Step 1

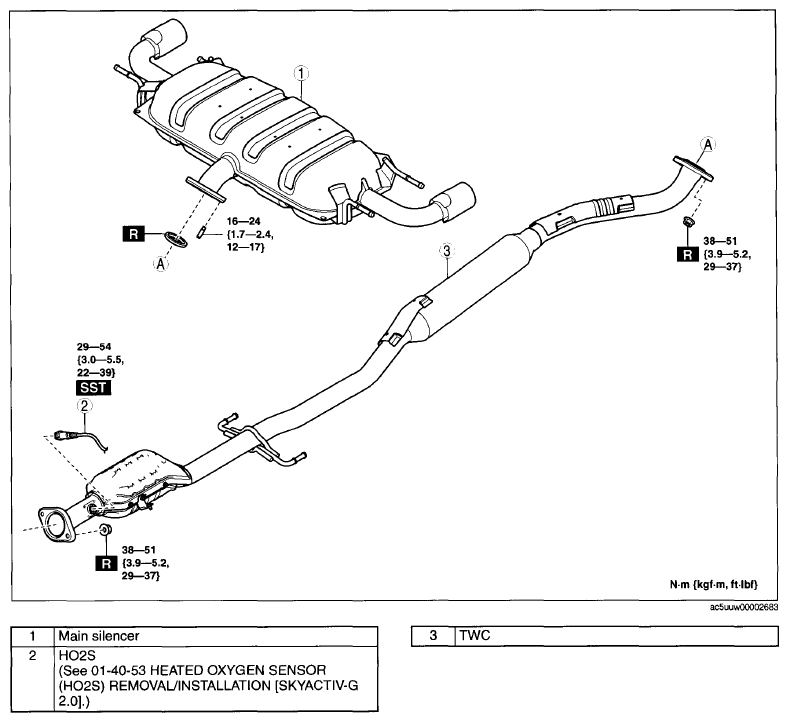

Fig 1: Main Silencer, HO2S And TWC With Torque Specifications (AWD)

Step 2

Fig 2: Exhaust System Replacement Components With Torque Specifications (AWD)
