Manifold Absolute Pressure (Map) Sensor/Intake Air Temperature (IAT) Sensor No.2 Removal/Installation
NOTE:
- Because the IAT sensor No.2 is integrated in the MAP sensor, replacing the IAT sensor No.2 includes replacement of the MAP sensor/IAT sensor No.2.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
- Disconnect the MAP sensor/IAT sensor No.2 connector.

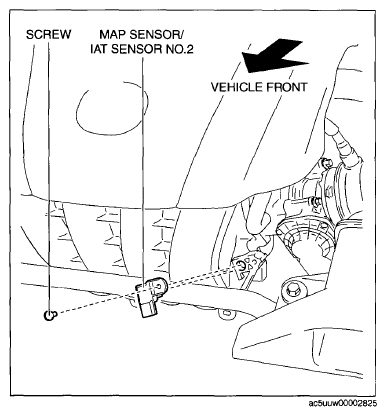

- Remove the MAP sensor/IAT sensor No.2.
- Install in the reverse order of removal.
