Front Accessory Socket Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION ).
Insert a tape-wrapped flathead screwdriver into the gap between the cap tab and socket.

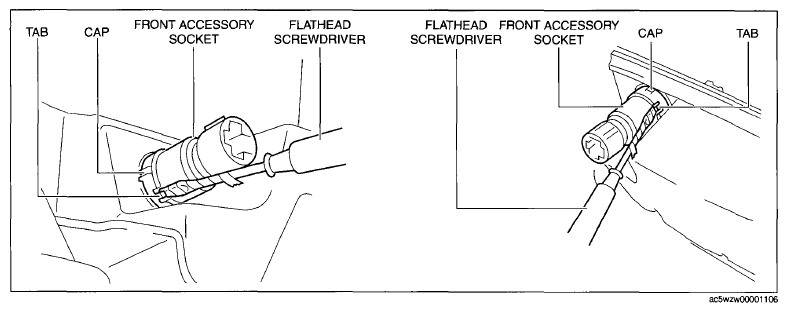

Fig 1: Inserting Tape-Wrapped Flathead Screwdriver Into Gap Between Cap Tab And Socket
Courtesy of MAZDA MOTORS CORP.
Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, press the front accessory socket in the direction of the arrow (2) shown in the figure, and detach the cap tab from the socket.

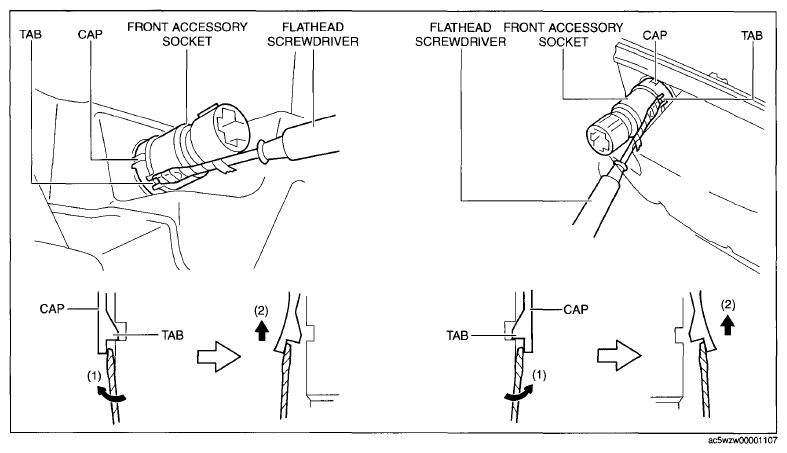

Fig 2: Disconnecting Cap Tab From Socket
Courtesy of MAZDA MOTORS CORP.
Pull the front accessory socket in the direction of the arrow shown in the figure and remove it.
While pressing the cap tabs in the direction of arrows (3) shown in the figure, press the cap in the direction of arrow (4) to detach the cap tabs from the front console.

Fig 3: Pulling Front Accessory Socket
Courtesy of MAZDA MOTORS CORP.

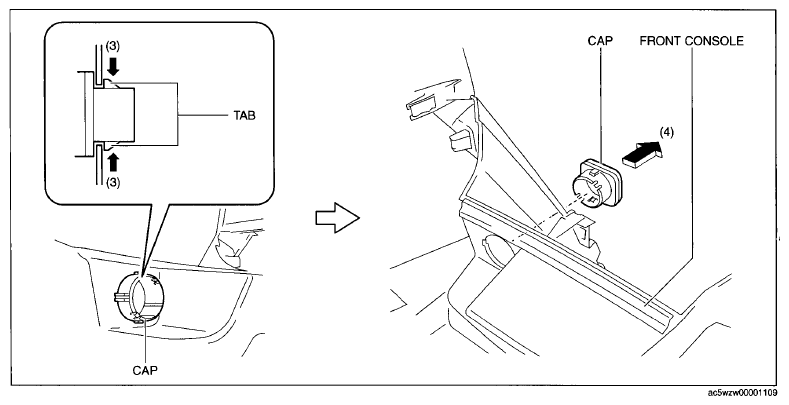

Fig 4: Disconnecting Cap Tabs From Front Console
Courtesy of MAZDA MOTORS CORP.
Remove the cap.
Install in the reverse order of removal.
