Rear Buckle Removal/Installation: Notes

  1. Switch the ignition to off.
  2. Disconnect the negative battery cable and wait for 1 min or more.  (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  3. Press the release switch, then disconnect the rear center seat belt and rear buckle.
  4. Fold down the rear seat back.
  5. Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION ).
    Fig 1: Identifying Rear Center Seat Belt, Buckle (LH) And Release Switch
    G09076265
  6. Remove the bolt.
  7. Remove the rear buckle (RH) and rear buckle (LH).
  8. Install in the reverse order of removal. (See REAR BUCKLE INSTALLATION NOTE ).

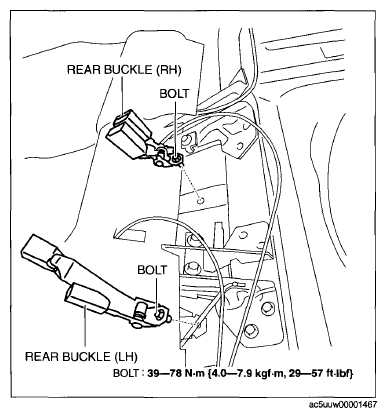

    Fig 2: Rear Buckle (RH), Rear Buckle (LH) And Bolt With Torque Specifications
    G09076266
