Back-Up Light Switch Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Remove the front under cover No.2. (See FRONT UNDER COVER NO.2 REMOVAL/INSTALLATION ).
Remove in the order indicated in the table.
Install in the reverse order of removal.

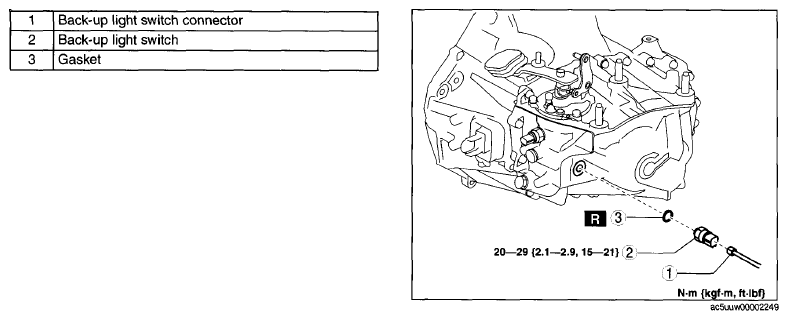

Fig 1: Back Up Light Switch, Connector And Gasket With Torque Specifications
