Neutral Switch Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the air cleaner component. (ex: air cleaner, air hose) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ).
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

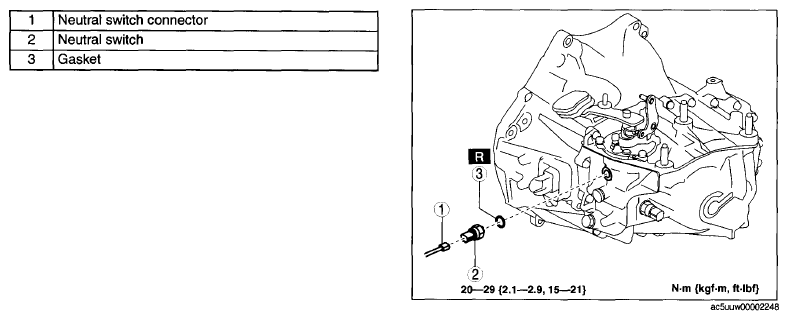

    Fig 1: Neutral Switch, Connector And Gasket With Torque Specification
    G09075334
