Shift Control Module Removal/Installation: Installation

Verify that the shift control module is in the neutral position.
NOTE:
- If the shift control module is in the neutral position, the shift lever with the weight can be moved up and down to a large extent.
Fig 1: Checking Shift Control Module Neutral Position
Install the shift control module in the order shown in the figure

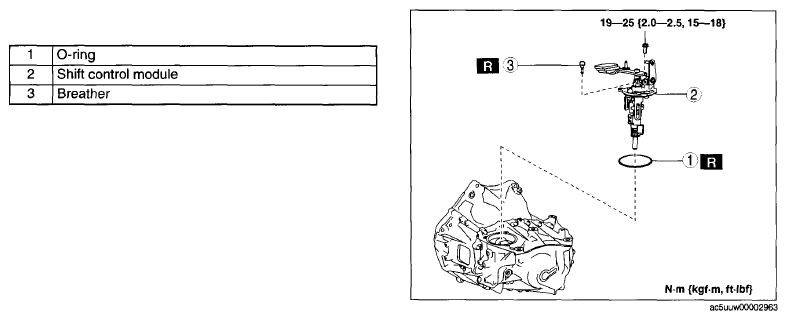

Fig 2: Shift Control Module, Breather And O-Ring With Torque Specification
Install the back-up light switch in the order shown in the figure

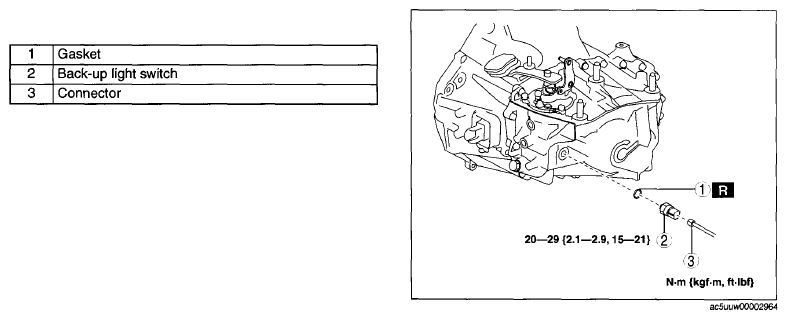

Fig 3: Back Up Light Switch, Connector And Gasket With Torque Specification
Install the detent ball pin in the order shown in the figure

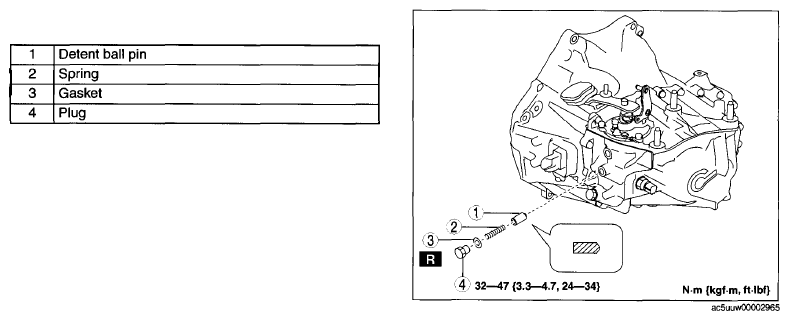

Fig 4: Plug, Gasket, Spring And Detent Ball Pin With Torque Specification
Install the neutral switch in the order shown in the figure

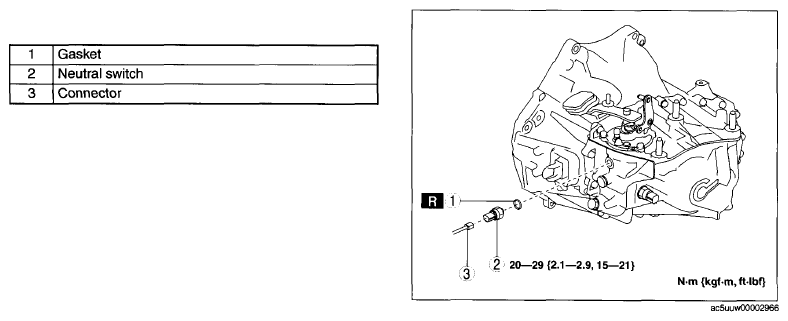

Fig 5: Neutral Switch, Connector And Gasket With Torque Specification
Connect the control cable to the transaxle.
Make sure that the shift lever can be shifted smoothly.
Install the battery tray and battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] ).
Install the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ).
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION ).

Fig 6: Identifying Transaxle
