Vehicle interior, front

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Remove the following parts:
1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION ).
2. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] ).
3. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION ).
4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION ).
5. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION ).
6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION ).
7. Side wall (See SIDE WALL REMOVAL/INSTALLATION ).
8. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION ).
Disconnect the connector from the keyless antenna.
CAUTION:
- Disconnect the connector while holding the keyless antenna, otherwise the keyless antenna bracket could be damaged.

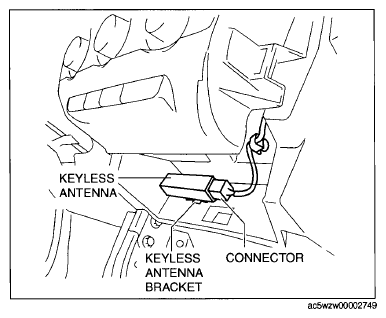

Fig 1: Identifying Keyless Antenna, Keyless Antenna Bracket Connector

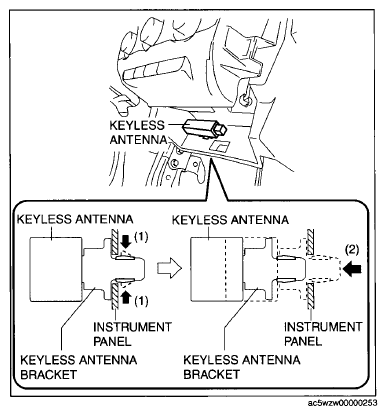

While pressing the keyless antenna bracket tab in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the keyless antenna bracket tab from the instrument panel.
Remove the keyless antenna from the instrument panel.

Fig 2: Removing Keyless Antenna From Instrument Panel
Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

Fig 3: Inserting Tape-Wrapped Flathead Screwdriver
Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure to press the keyless antenna bracket tab, and pull it in the direction of arrow (2) to detach the keyless antenna bracket from the keyless antenna.
Remove the keyless antenna bracket from the keyless antenna.
Install in the reverse order of removal.
