Fuel Tank Inspection: 2WD

  1. Level the vehicle.
  2. Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION ).
  3. Drain the fuel. (See FUEL DRAINING PROCEDURE ).
  4. Using the following procedure:

    6:4 split type

    1. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION ).

    4:2:4 split type

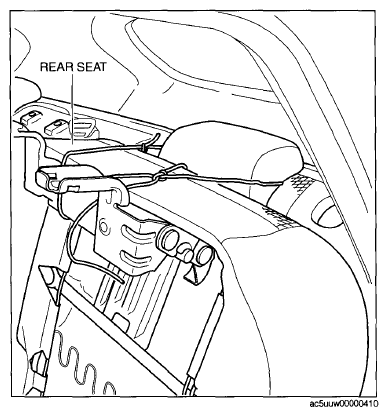

    1. Set the rear seat aside as shown in the figure.

      (See REAR SEAT REMOVAL/INSTALLATION ).

      Fig 1: Positioning Rear Seat (2WD)
      G09074908

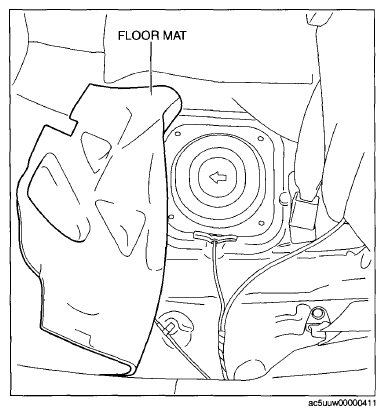

  5. Partially peel back the floor mat as shown in the figure.
    Fig 2: Identifying Floor Mat
    G09074909
  6. Remove the service hole cover.
  7. Disconnect the following parts:
  8. Remove the floor under cover (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION ).
  9. Disconnect the HO2S connector.
  10. Remove the TWC and HO2S as a single unit. (See EXHAUST SYSTEM REMOVAL/INSTALLATION )
  11. Remove the fuel tank and fuel pump unit as a single unit. (See FUEL TANK REMOVAL/INSTALLATION )
  12. Perform the following procedure to verify the fuel tank airtightness.
    Fig 3: Identifying Service Hole Cover And Screws
    G09074910

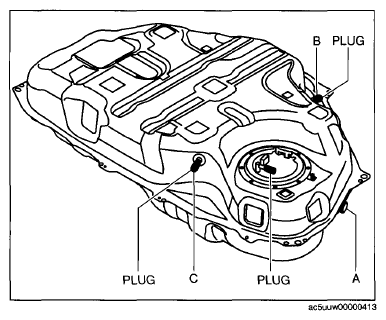

    1. Plug the fuel pump unit pipe, ports B and C.
    2. Apply a pressure of 3 kPa {23 mmHg, 0.9 inHg}  to port A and wait for a while.
    3. Verify that there is no air flow leakage from the fuel tank.
  13. Plug the fuel pump unit pipe and port B.
  14. Level the fuel tank.
  15. Apply a pressure of 3 kPa {23 mmHg, 0.9 inHg}  to port A and wait for a while.
  16. With the pressure still applied, verify that there is air flow from port C and the pressure is 0-3 kPa {0-23 mmHg, 0-0.9 inHg}.
    • If there is no air flow, replace the fuel tank. (See FUEL TANK REMOVAL/INSTALLATION ).

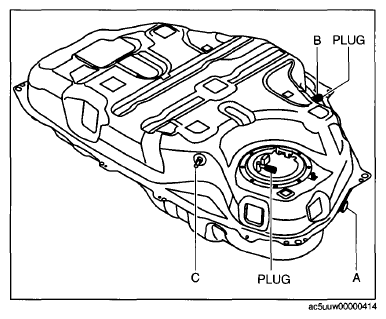

      Fig 5: Identifying Fuel Pump Unit Pipe Plug And Ports A And C
      G09074912
  17. Apply a pressure of -0.5 kPa {-3.8 mmHg, -0.1 inHg}  to port A and wait for a while.
  18. With the pressure still applied, verify that there is air flow from port C and the pressure is -0.5-0 kPa {-3.8-0 mmHg, -0.1-0 inHg}.
  19. Apply a pressure to port A and wait for a while.
  20. With the pressure still applied, verify that there is no air flow from port C.
    • If there is air flow, replace the fuel tank. (See FUEL TANK REMOVAL/INSTALLATION ).

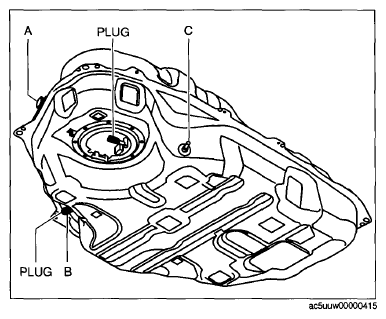

      Fig 6: Identifying Fuel Pump Unit Pipe Plug And Ports A, B And C
      G09074913
