Air Fuel Ratio (A/F) Sensor Removal/Installation: Notes

WARNING:

• A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

CAUTION:

• Do not allow flammable objects such as the taping for bundling wiring harness to come into contact with the exhaust manifold and silencer.

NOTE:

• If penetrant lubricating spray penetrates the airflow hole of the A/F sensor, it could cause interference with the A/F sensor function.

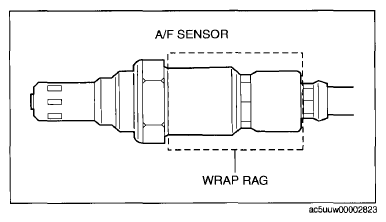

• When removing the A/F sensor, wrap a rag around the lower position so that penetrant lubricating spray does not get sprayed into the airflow hole.

Fig 1: Identifying A/F Ratio Sensor

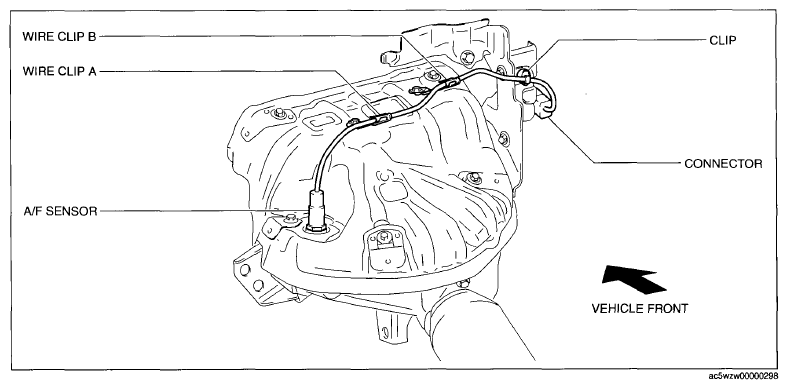

Fig 2: Removing A/F Ratio Connector

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION ).
3. Disconnect the A/F sensor connector.
4. Remove the clip from the heat insulator.

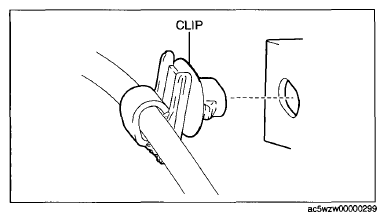

   Fig 3: Identifying Heat Insulator Clip


5. Remove the wiring harness from the wire clip A and B. (See ASSEMBLY OF WIRING HARNESS TO WIRE CLIP NOTE ).

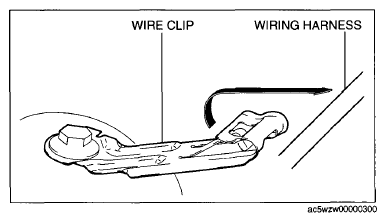

   Fig 4: Removing Wiring Harness From Wire Clip


6. Remove the A/F sensor using the SST  .
7. Install in the reverse order of removal.

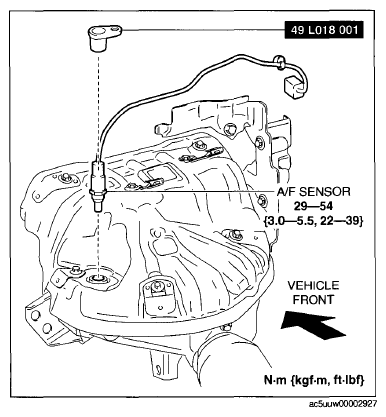

   Fig 5: Removing A/F Sensor Using SST With Torque Specifications
