Troubleshooting Procedure

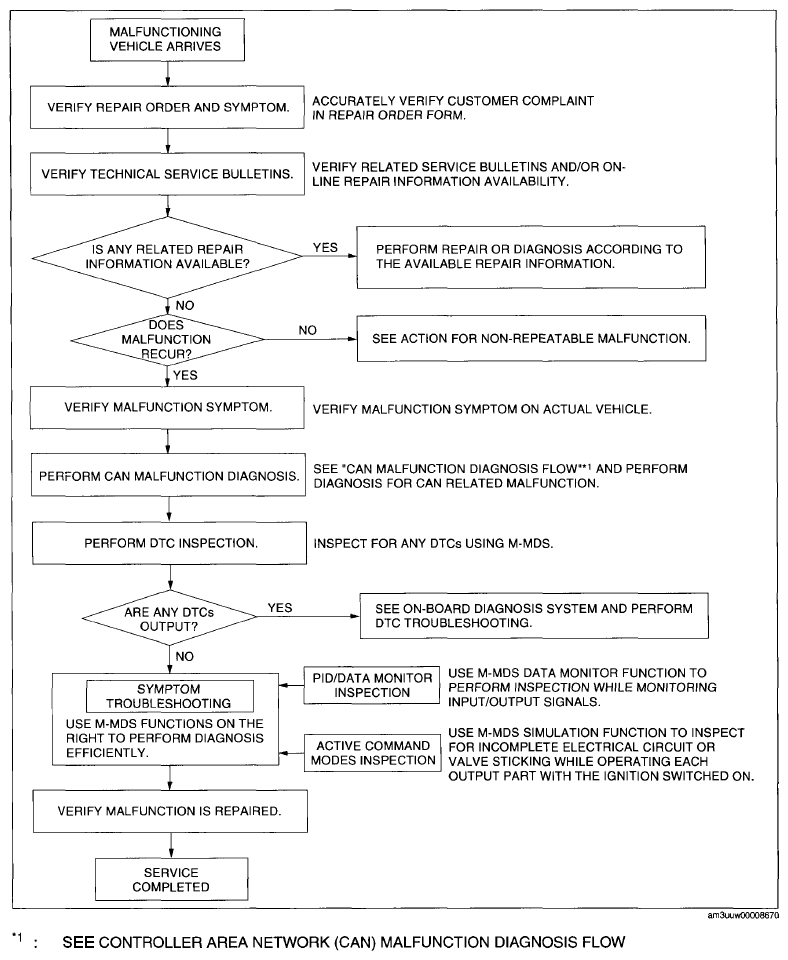

Fig 1: Troubleshooting Procedure Chart
*1
:
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
