DRL Control Module Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
  3. Disconnect the connectors.
  4. Remove the screw and then remove the DRL control module.
  5. Install in the reverse order of removal.

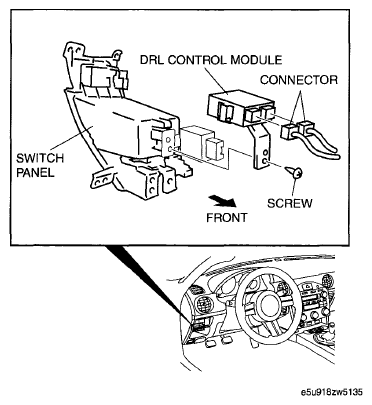

Fig 1: Screw And DRL Control Module
G06149857Courtesy of MAZDA MOTORS CORP.
