Flasher Control Module Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
  3. Disconnect the connector.
  4. Remove the screw and then remove the flasher control module.
  5. Install in the reverse order of removal.

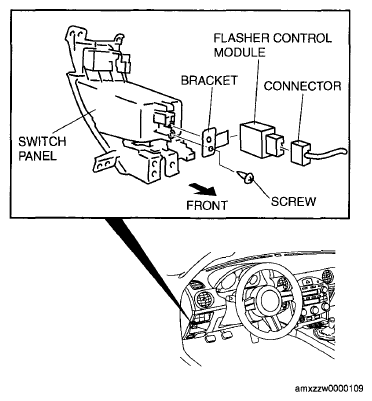

Fig 1: Screw And Flasher Control Module
G06149858Courtesy of MAZDA MOTORS CORP.
