DSC Off Switch Inspection

Remove the DSC OFF switch. (See DSC OFF SWITCH REMOVAL/INSTALLATION .
Verify that the continuity is as indicated in the chart in illustration.
- If not as indicated in the chart, replace the DSC OFF switch. (See DSC OFF SWITCH REMOVAL/INSTALLATION )

  Fig 1: Terminal Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

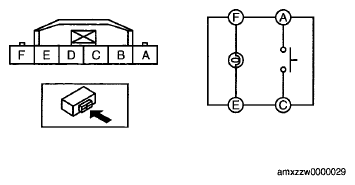

  Fig 2: DSC OFF Switch Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
