Circuit Open/Short Inspection

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION ).
2. Inspect the following wiring harness for open or short circuit (continuity Inspection).

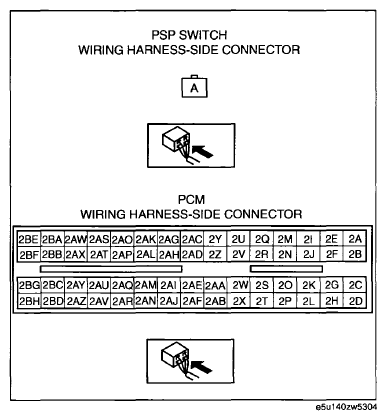

   Fig 1: Identifying PSP Switch Wiring Harness-Side Connector Terminals

   Courtesy of MAZDA MOTORS CORP.

Open circuit

• If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
  • PSP switch terminal A and PCM terminal 2T

Short circuit

• If there is continuity, there is a short circuit. Repair or replace the wiring harness.
  • PSP switch terminal A and body ground
