Washer Fluid-Level Sensor Removal/Installation

NOTE:

If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Disconnect the connector.

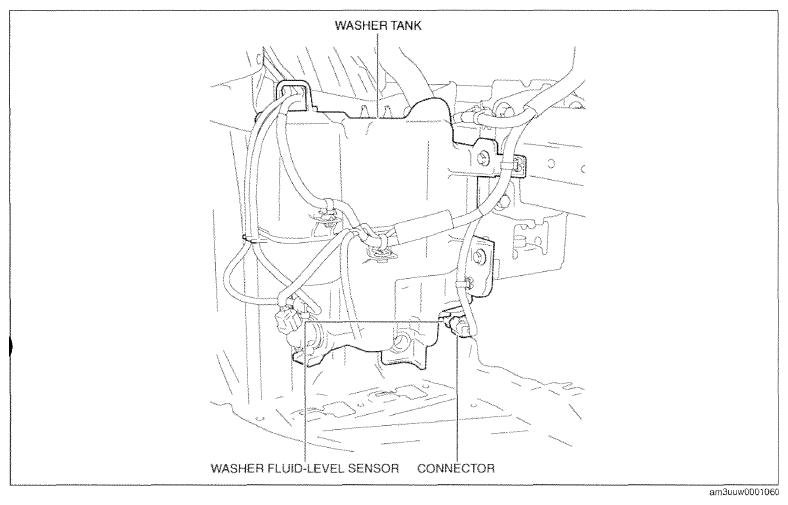

Fig 1: Identifying Washer Fluid-Level Sensor And Connector
Courtesy of MAZDA MOTORS CORP.
Remove the washer fluid-level sensor.
Remove the grommet.
Install in the reverse order of removal.

Fig 2: Removing Washer Fluid-Level Sensor
Courtesy of MAZDA MOTORS CORP.
