Front Outer Handle Bracket Installation Note

To assure that the rod is inserted into the rod holder hole, verify that the there is no excessive play.

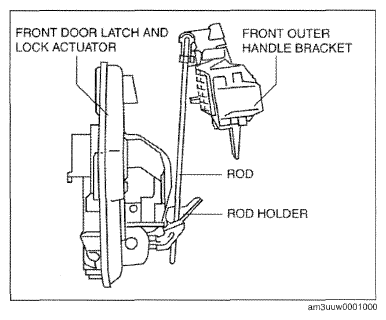

Fig 1: Identifying Front Outer Handle Bracket
Courtesy of MAZDA MOTORS CORP.
