Liftgate Lock Striker Removal/Installation

  1. Remove the lock bezel on the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Remove the bolts, then remove the liftgate lock striker.
  3. Install in the reverse order of removal.
  4. Adjust the liftgate. (See LIFTGATE ADJUSTMENT .)

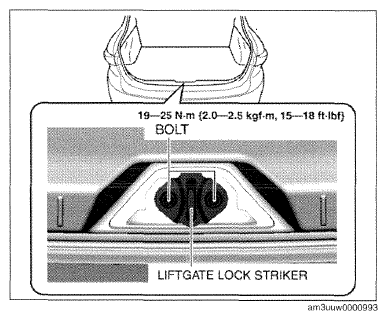

    Fig 1: Liftgate Lock Striker With Torque Specifications
    G09772021Courtesy of MAZDA MOTORS CORP.
