Door Glass Other Than Drivers Door Cannot Be Operated (Cannot Be Operated Using Each SUBSWITCH But Can Be Operated Using Power Window Main Switch): Notes
DOOR GLASS DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Door glass other than driver's door cannot be operated using subswitches but can be operated using power window main switch |
| Possible Causes |
- Power window subswitch malfunction
- Malfunction in power window subswitch power supply circuit

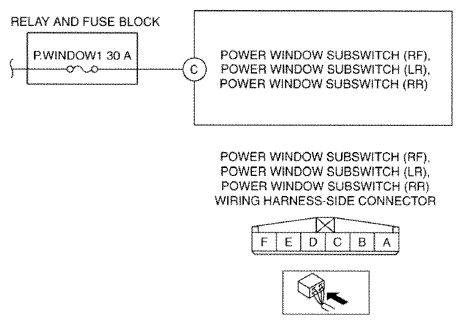

- Short to ground in wiring harness between P.WINDOW1 30A fuse and power window subswitch terminal C
- Open circuit in wiring harness between P.WINDOW1 30A fuse and power window subswitch terminal C
- Connector poor contact or terminal damage
- Customer mis-operation or misunderstanding
|
 Courtesy of MAZDA MOTORS CORP.
|
