DTC C1109 64: DSC Off Switch: Notes
DTC C1109 64 DETECTION CONDITIONS AND POSSIBLE CAUSES (DYNAMIC STABILITY CONTROL)
| DTC |
C1109:64 |
DSC OFF switch |
| DETECTION CONDITION |
- Continuous ON signal from the DSC OFF switch for 10 s or more
is detected.
|
| FAIL-SAFE FUNCTION |
- Permits the control and does not illuminate each warning/indicator light.
|
| POSSIBLE CAUSE |
- The driver pressed and held the DSC OFF switch for 10 s or more.

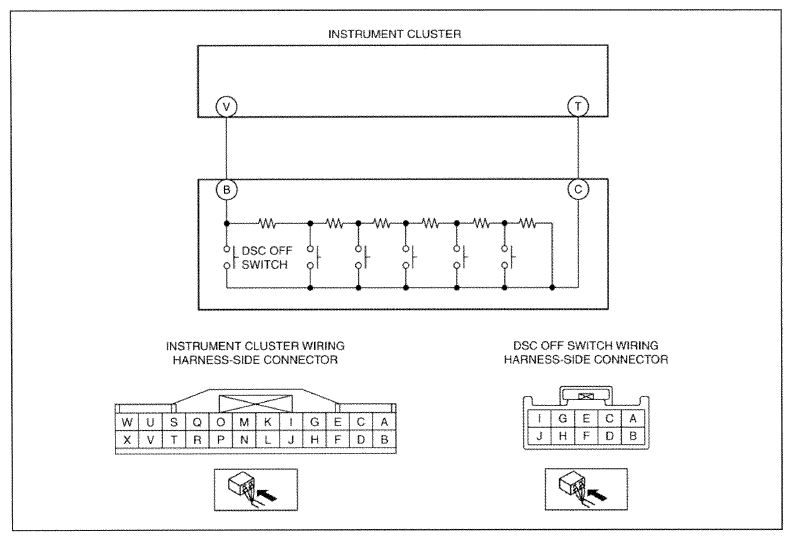

- Short to ground in the wiring harness between the instrument cluster terminal V and DSC OFF switch terminal B
- Open circuit in wiring harness between instrument cluster terminal T and DSC OFF switch terminal C
- DSC OFF switch malfunction
- Poor connection at connectors (female terminal)
|
 Courtesy of MAZDA MOTORS CORP.
|
