Symptom Troubleshooting

Verify the symptoms, and perform troubleshooting according to the appropriate number.

INTERMITTENT CONCERN TROUBLESHOOTING CHART

No.	Symptom
1	Any of the following lights are not illuminated when the ignition is switched ON: ABS warning light Brake system warning light TCS/DSC indicator light DSC OFF indicator light
2	Any of the following lights remain illuminated: ABS warning light TCS/DSC indicator light DSC OFF indicator light
3	Brake system warning light remains illuminated
4	A malfunction in the system even though the ABS warning light, brake system warning light, TCS/DSC indicator light and DSC OFF indicator light are not illuminated
5	ABS or TCS^*1 operates frequently
5	TCS does not work correctly
6	DSC^*2 operates frequently
6	DSC does not work correctly
7	Hill launch assist (HLA) operates even on a down slope
7	Hill launch assist (HLA) does not operate on a slope
8	Smart City Brake Support (SCBS) indicator light (amber) stay on

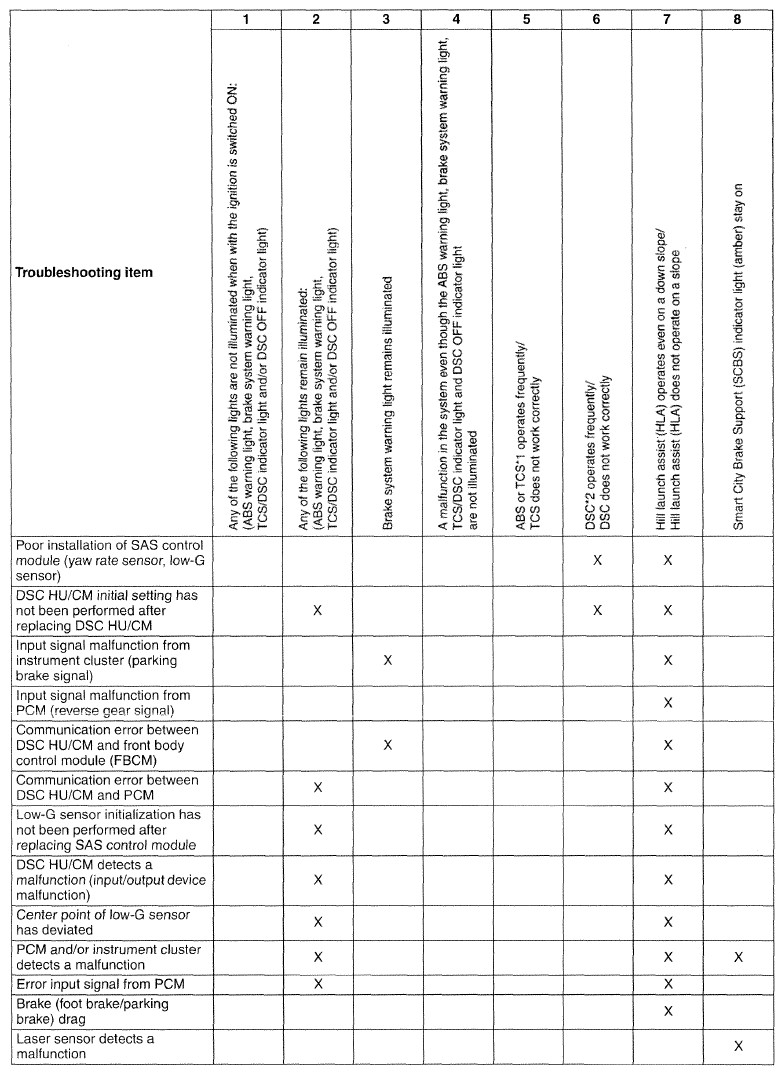

Fig 1: Troubleshooting Chart (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

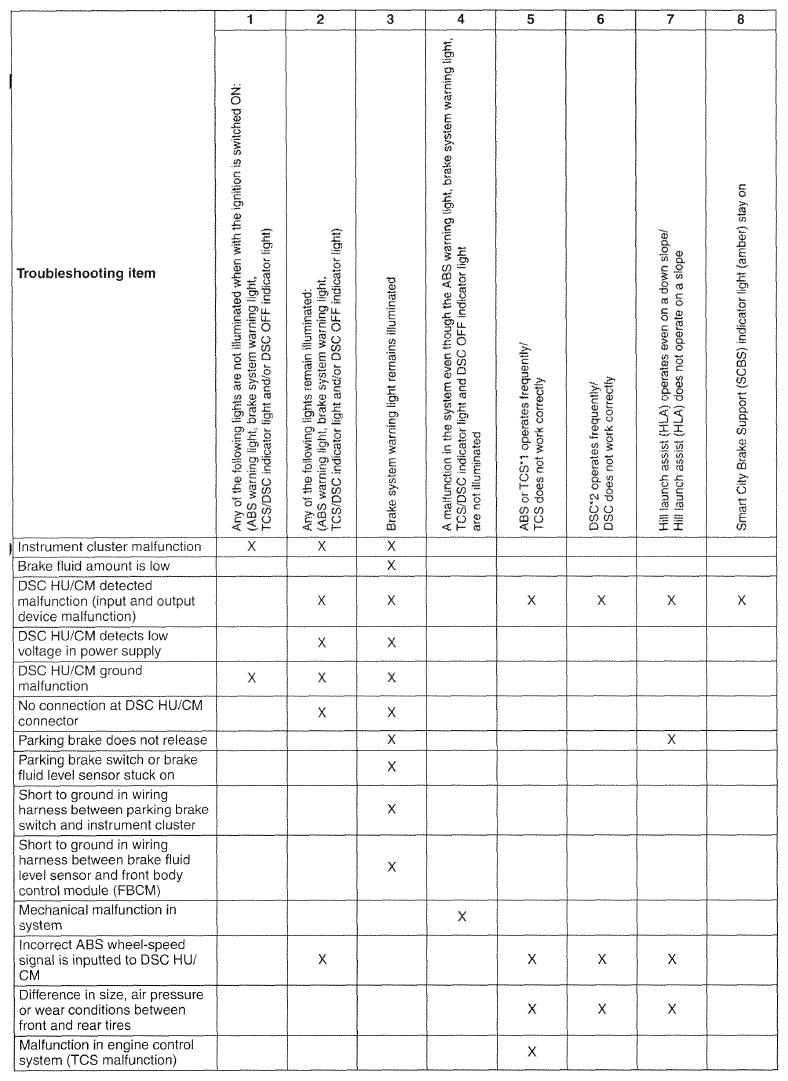

Fig 2: Troubleshooting Chart (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

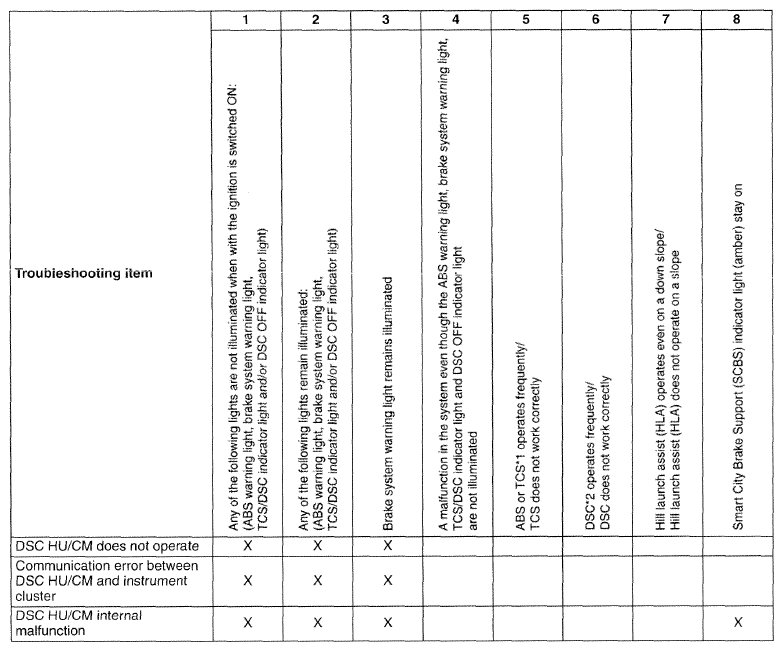

Fig 3: Troubleshooting Chart (3 Of 3)

Courtesy of MAZDA MOTORS CORP.

*1: DSC system function contains traction control function. TCS/DSC indicator light turns on and off while TCS operates

*2: TCS/DSC indicator light turns on and off while DSC operates
