DTC P0113 00: IAT Sensor No. 1 Circuit High Input: Notes
DTC P0113:00 DETECTION CONDITIONS AND POSSIBLE CAUSES (SKYACTIV-G 2.0, SKYACTIV-G 2.5)
| DTC P0113:00 |
IAT sensor No. 1 circuit high input |
| DETECTION CONDITION |
- The PCM monitors the IAT sensor No. 1 signal. If the PCM detects that the IAT sensor No. 1 voltage at the PCM terminal 2U is above 4.62 V
for 5 s
, the PCM determines that the IAT sensor No. 1 circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Fixes the intake air temperature (for engine control) at 20 °C {68 °F}
.
- Inhibits the fuel cut control during shift change.
|
| POSSIBLE CAUSE |
- MAF sensor/IAT sensor No. 1 connector or terminals malfunction
- PCM connector or terminals malfunction
- IAT sensor No. 1 malfunction

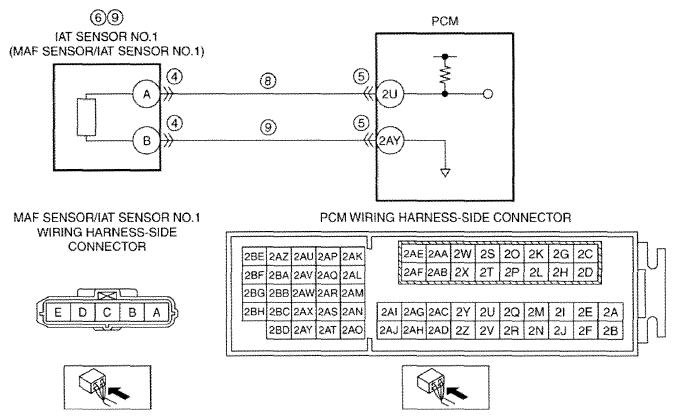

- Short to power supply in wiring harness between MAF sensor/IAT sensor No. 1 terminal A and PCM terminal 2U
- Open circuit in wiring harness between the following terminals:
- MAF sensor/IAT sensor No. 1 terminal A-PCM terminal 2U
- MAF sensor/IAT sensor No. 1 terminal B-PCM terminal 2AY
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
CAUTION:
- Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
RELATED PIDS
| Item (definition) |
Unit/Condition |
Definition |
Condition/Specification (Reference) |
| IAT |
°C, °F |
Intake air temperature (No. 1) |
|
| V |
IAT sensor No. 1 voltage |
- IAT is 20 °C {68 °F}: Approx. 2.70 V
- IAT is 40 °C {104 °F}: Approx. 1.80 V
- IAT is 60 °C {140 °F}: Approx. 1.20 V
|
