Accelerator Pedal Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

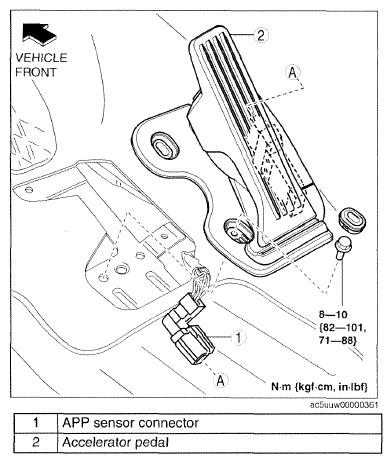

    Fig 1: APP Sensor Connector, Accelerator Pedal And Bolts With Torque Specifications
    G09786781Courtesy of MAZDA MOTORS CORP.
