DTC B1088 88: Lin Communication Error: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

DTC B1088:88 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSES

Description	LIN communication error
Detection condition	LIN bus communication line malfunction detected for 1 s or more
Fail-safe function	Not applicable

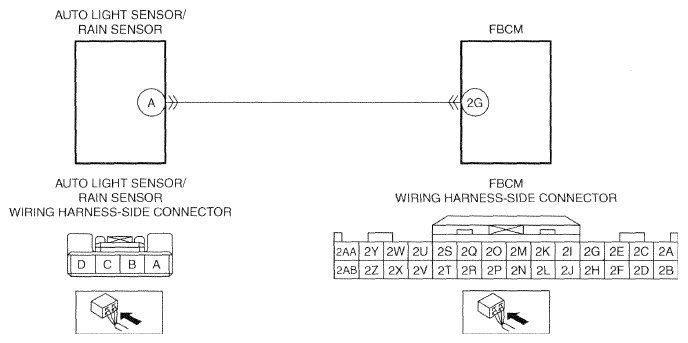

Possible cause	Malfunction in LIN bus communication line Auto light sensor/rain sensor terminal A-Front body control module (FBCM) terminal 2G Front body control module (FBCM) malfunction
Courtesy of MAZDA MOTORS CORP.
