DTC B1092 11: DRL Relay Circuit Malfunction: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

DTC B1092:11 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSES

Description	DRL relay circuit malfunction
Detection condition	Front body control module (FBCM) detects a short to ground in the DRL relay circuit with the ignition switched ON (engine off or on).
Fail-safe function	Not applicable

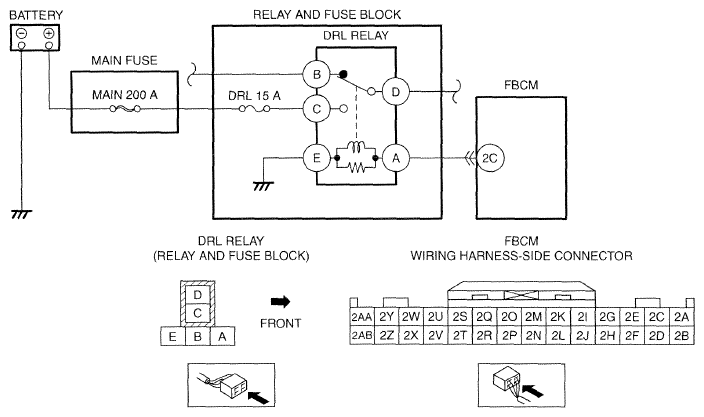

Possible cause	DRL relay malfunction Front body control module (FBCM) connector or terminal malfunction Short to ground in wiring harness between DRL relay terminal A and front body control module (FBCM) terminal 2C Front body control module (FBCM) malfunction
Courtesy of MAZDA MOTORS CORP.
