DTC B13D2 12: Front Fog Light Relay Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DTC B13D2:12 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Front fog light relay circuit malfunction |
| Detection condition |
- Front body control module (FBCM) detects a short to power supply in the front fog light relay circuit with the ignition switched ON (engine off or on).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Front fog light relay malfunction
- Front body control module (FBCM) connector or terminal malfunction

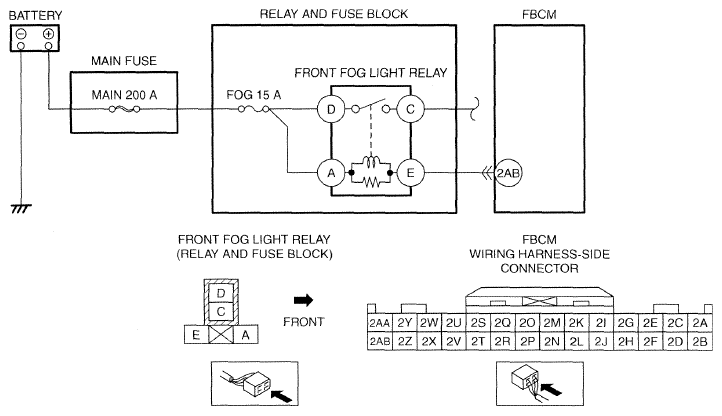

- Short to power supply in wiring harness between front fog light relay terminal E and front body control module (FBCM) terminal 2AB
- Front body control module (FBCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
