Hood Release Cable Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION .)
    2. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    3. Shroud upper member (See SHROUD UPPER MEMBER REMOVAL/INSTALLATION .)
    4. Front mudguard (Driver's side) (See MUDGUARD REMOVAL/INSTALLATION .)
    5. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
  3. Disconnect the hood release cable from the hood latch.
  4. Remove the hood release cable from clip.

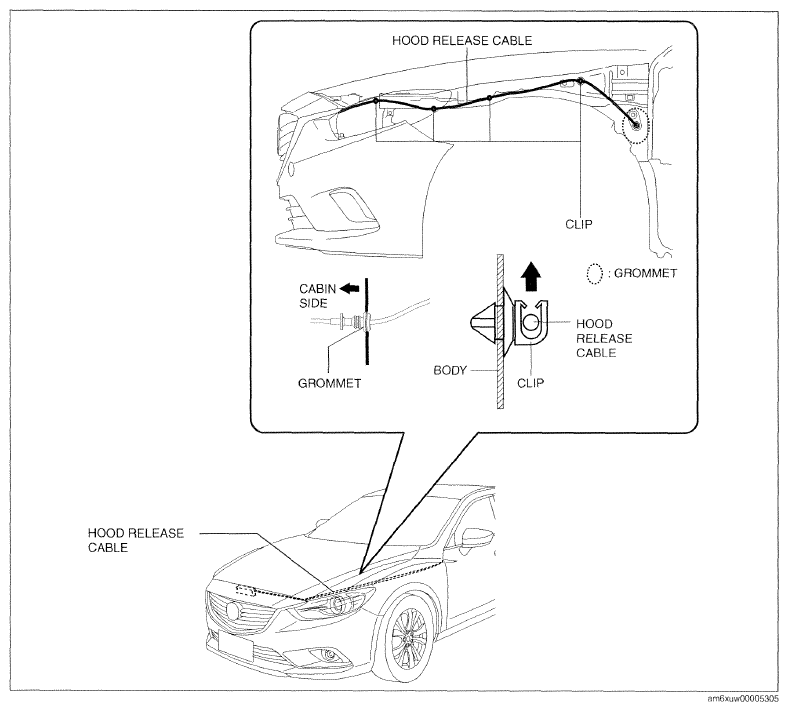

    Fig 1: Removing Hood Release Cable From Clip
    G09787727Courtesy of MAZDA MOTORS CORP.
  5. Press the grommet into the cabin side.
  6. Remove the hood release cable from the cabin side.
  7. Install in the reverse order of removal.
