Remote Transmitter Disassembly/Assembly: Assembly

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

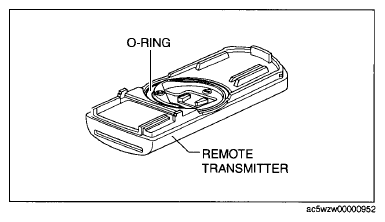

Verify that the O-ring is installed to the remote transmitter.
NOTE:
- If the O-ring is removed, install it before installing the battery.
Fig 1: Identifying Remote Transmitter O-Ring
Courtesy of MAZDA MOTORS CORP.

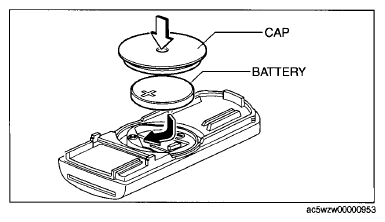

Install a new battery (CR2025) in the direction of the arrow shown in the figure with the negative pole facing down.
Install the cap.

Fig 2: Installing Battery (CR2025)
Courtesy of MAZDA MOTORS CORP.

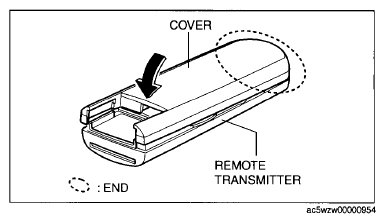

Align the cover to the transmitter from its end and press it in the direction of the arrow shown in the figure to engage the tabs of the cover with the remote transmitter.

Fig 3: Aligning Cover To Transmitter
Courtesy of MAZDA MOTORS CORP.

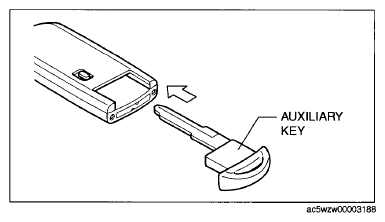

Insert the auxiliary key.

Fig 4: Inserting Auxiliary Key
Courtesy of MAZDA MOTORS CORP.
