Keyless entry system/Push Button Start System/Immobilizer system

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

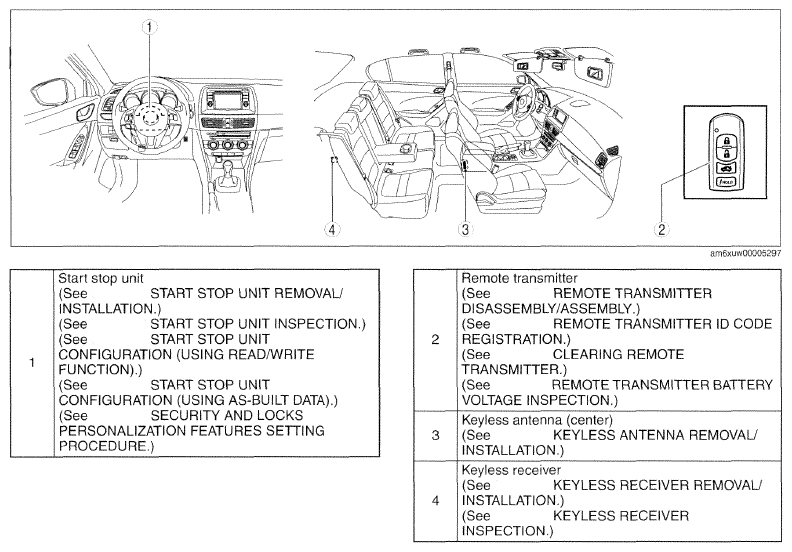

Fig 1: Keyless Entry System/Push Button Start System/Immobilizer System Component Locations
G09787694Courtesy of MAZDA MOTORS CORP.
