Connector Installation Note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the connector in the order shown in the figure.
  2. After connecting the connector, verify that the connector is completely locked.

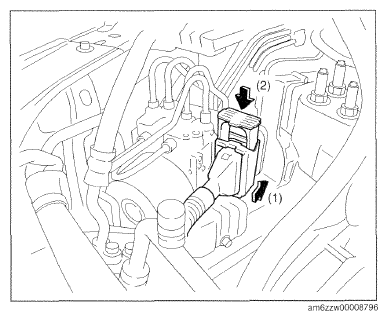

    Fig 1: Connecting Connector
    G09785869Courtesy of MAZDA MOTORS CORP.
