A/C Compressor Installation Note
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Due to the high moisture-absorption characteristics of the compressor oil, it may absorb moisture if left over a long period of time thereby negatively affecting A/C operation. Drain the compressor oil and refill within 10 min. of each other.

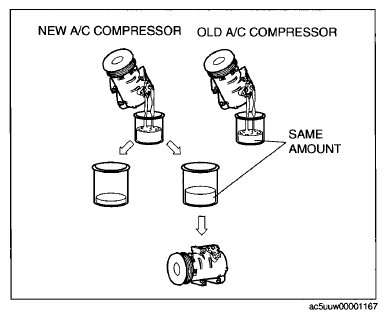

- Rotate the new A/C compressor shaft six to eight revolutions while pouring refrigerant oil into a clean measuring container. Use this refrigerant oil to refill the new compressor. Do not allow refrigerant oil to become contaminated.
- Rotate the old A/C compressor shaft six to eight revolutions while adding refrigerant oil to a separate, clean measuring container.
- Compare the oil amounts. The amount of the oil drained from the new A/C compressor should be more than the old one.
- Add the same amount oil drained from the old A/C compressor back into the new A/C compressor.
A/C compressor oil type
FD46XG
A/C compressor oil sealed volume (approx. quantity)
100 ml {100 cc, 3.38 fl oz}
