Drain Hose Installation Note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

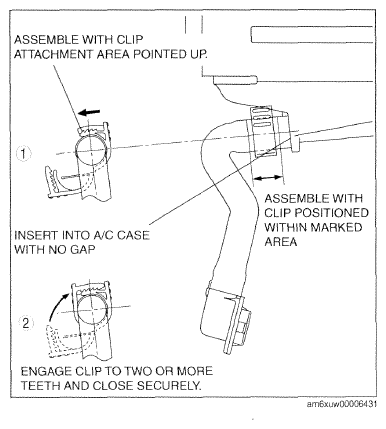

  1. Install the clip as shown in the figure.
    Fig 1: Identifying Drain Hose
    G09786858Courtesy of MAZDA MOTORS CORP.
